Osda Solar Panel 590 Watts 37 Pieces Bifacial Mono ODA590-36V-MHD 1 Pallet

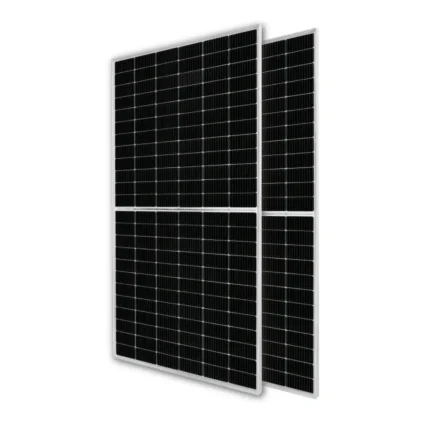

OSDA 590W N-Type Bifacial Solar Panel

The OSDA 590W N-Type Bifacial Solar Panel is a high-performance, dual-glass module engineered to deliver maximum power and reliability for your solar system. Utilizing 144 half-cut N-type monocrystalline cells, this panel achieves an outstanding efficiency of 22.83%. Its innovative bifacial design allows it to capture reflected light from the rear side, boosting total energy generation by 5% to 25% compared to standard single-sided panels.

Advanced Durability & Protection Designed to thrive in harsh environments, this module features a highly durable anodized aluminium alloy frame and dual 2.0mm glass construction. It offers excellent PID resistance and includes an IP68-rated waterproof junction box for superior protection. The panel easily withstands severe weather, bearing mechanical loads of up to 5400Pa for snow and 2400Pa for wind.

Key Technical Specifications:

• Maximum Power (Pmax): 590W

• Module Efficiency: 22.83%

• Cell Type: 182x91mm N-Type Bifacial Mono (144 Cells)

• Optimum Operating Voltage (Vmp): 42.67V

• Optimum Operating Current (Imp): 13.83A

• Dimensions: 2278 x 1134 x 30mm

• Weight: 32.00kg

• Operating Temperature: -40°C to +85°C
