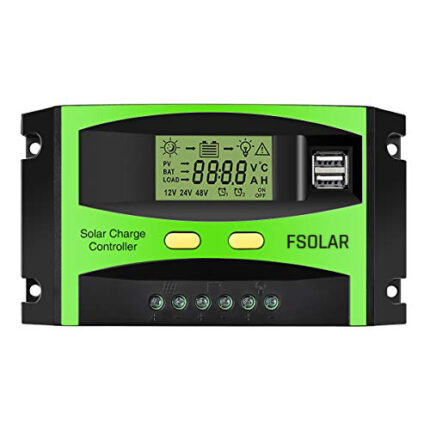

Fsolar 60A PWM Solar Charge Controller 12V/24V AUTO LCD Display
-
Pick up from FSOLAR Store
Musaffah Industrial 11, Abu Dhabi
📍 Get Directions
Free
-
Courier Delivery
Delivered to your address across the UAE
AED 25 · Free over AED 1,000
Automatic PWM solar charge controller rated current 60A, auto switch DC 12V/24V, PWM charge controller, fast charging time, with overvoltage, short circuit, overload protection, suitable for the small solar energy system.
Original price was: 220,00 د.إ.118,00 د.إCurrent price is: 118,00 د.إ.
Description
Safety 60 Amp PWM solar charge controller can automatically recognize 12V/24V, clear LED display, it is widely used in solar control systems.
Specification:
| Model | FSOLAR 60A |
| System Voltage | DC 12V/24V automatically switch |
| The Max Voltage of The Solar Panel Input | 50V (12V/24V) |
| Self Los | ≤13mA |
| Max Charge Current | 20A |
| Max Discharge Current | 20A |
| LVD | (9-11V), 21V (18-22V), 42V (36-44V) |
| LVR | 12.6V (11-13.5V), 25.2V (22-27V) |
| Floating Voltage | 13.8V (13-15V), 27.6V(26-30V) |
| Increase the Charge | 14.4V/28.8V/57.6V, the battery voltage is below 12V/24V start extra charge for 2 hours |
| Batterry overpressure protection | 15V/30V |
| Input Reverse Connection Protection | Yes |
| Load Over Current Protection | Yes, every two seconds to restart |
| Charging Mode | PWM |
| Temperature Compensation | -24mV℃， -48mV℃， -96-mV℃， relative to 12V/24V system |
| Operating Temperation | -20℃- +55℃ |
| Terminal Scale | 28-10AWG |
| Waterproof level | IP 32 |
| Product Size | 195mm*107mm*59mm |
| Weight | 850g |
Features
- Automatic identification system voltage 12V/24V.
- Personalized LCD display and two-button operator and page.
- High-performance PWM three-stage charging.
- You can choose to load the control template and set the streetlights in the world at night.
- With overvoltage, short circuit, overload, overcharge, over-discharge protection.
- Accurate temperature compensation, correct charging, and discharging voltages automatically extend battery life.
- The default setting can be reset when the controller with the parameter set is powered off.
- The positive and negative terminals of the input terminal are reversely connected to protect.
Specification
Overview
| BRAND | FSOLAR |
|---|---|
| VOLT | 12V, 24 V, 48V |
| AMPS | 60A |
