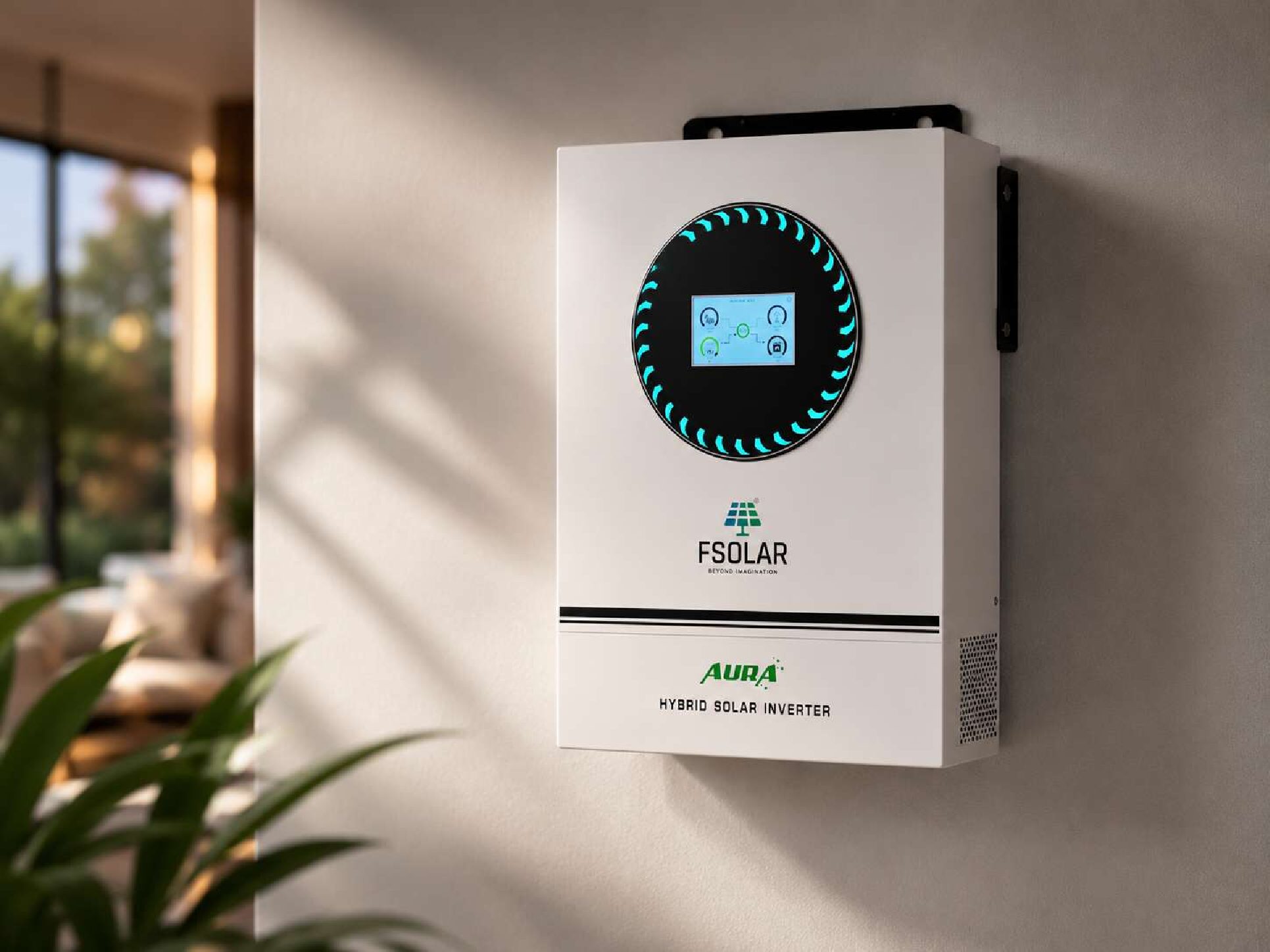

FSolar Aura 6.2kW 48V Hybrid Solar Inverter

The FSolar Aura 6.2kW 48V Hybrid Solar Inverter is a high-performance solar power solution designed to manage energy from solar panels, batteries, utility power, and compatible generators.

Operating with a 48V battery system, the Aura 6.2kW inverter delivers reliable pure sine wave power for homes, shops, offices, farms, and off-grid installations. It combines a powerful inverter, high-voltage MPPT solar charger, battery charger, grid support, and intelligent system management in one compact unit.

With a rated output power of 6200W and peak power of 12,400VA, the inverter can handle demanding loads and the higher startup power required by compatible motors, pumps, refrigerators, and other appliances.

Pure Sine Wave Output

The inverter produces clean and stable pure sine wave AC output, making it suitable for household appliances, office equipment, lighting, computers, televisions, refrigerators, and other compatible electronic devices.

AC Output Performance

• Rated output power: 6200W
• Peak power: 12,400VA
• Output voltage: 220V / 230V / 240V AC
• Output frequency: 50Hz / 60Hz
• Output waveform: Pure sine wave
• Adjustable transfer time:
  • 10ms for computers
  • 20ms for household equipment
• Grid-operation power factor: Above 0.99
• Maximum DC-to-AC efficiency: 98%

Powerful 8500W MPPT Solar Input

The built-in MPPT solar charger supports up to 8500W of PV input power, allowing the inverter to operate with a substantial solar panel array.

Its wide solar input voltage range provides flexibility when configuring compatible solar panel strings.

Solar Input Specifications

• Solar charging method: MPPT
• Maximum PV input power: 8500W
• PV operating voltage range: 60V–500V DC
• Maximum PV input voltage: 500V DC
• Maximum PV input current: 27A
• Maximum PV charging current: 120A

The connected solar panels must be configured so that their total open-circuit voltage remains safely below the inverter’s maximum PV input voltage under all expected weather conditions.

120A High-Capacity Battery Charging

The FSolar Aura inverter supports powerful battery charging from solar and AC sources.

Charging Capacity

• Maximum PV charging current: 120A
• Maximum AC charging current: 100A
• Maximum combined charging current: 120A

The charging current must be configured according to the connected battery’s permitted charging specifications.

48V Battery System

The inverter is designed for 48V battery banks and can be used with compatible lithium and traditional battery systems.

Battery Parameters

• Rated battery voltage: 48V DC
• Constant charging voltage: 56.4V DC
• Float charging voltage: 54V DC
• Expansion slot for compatible BMS communication card
• Suitable for compatible lithium battery communication systems

Battery communication protocols and charging parameters must be confirmed before installation.

Dual Output Capability

The Aura inverter includes dual-output functionality, allowing loads to be separated and managed according to their priority.

Essential equipment can be connected separately from non-essential loads, helping to preserve battery capacity during power interruptions or low-energy conditions.

Grid Feed-In Operation

The inverter supports grid-connected operation and energy feed-in functionality when correctly configured and permitted by the local electricity authority.

Grid-export operation must comply with applicable utility approvals, meter requirements, electrical regulations, and installation standards.

Parallel System Expansion

The FSolar Aura 6.2kW supports parallel operation, allowing compatible inverter systems to be expanded for higher output capacity or larger installation requirements.

Parallel installations must use matching inverter models and follow the approved connection and programming procedures.

Intelligent LCD Display

The integrated LCD screen displays important system information, including:

• Operating mode
• Solar input
• Battery status
• AC input
• AC output
• Connected load
• Charging information
• System warnings and operating conditions

Key Features

• 6.2kW rated output power
• 12.4kVA peak power
• 48V battery system
• Pure sine wave AC output
• Built-in high-voltage MPPT solar charger
• Maximum 8500W PV input power
• Wide 60V–500V PV input range
• Maximum 500V PV input voltage
• Maximum 27A PV input current
• 120A maximum PV charging current
• 100A maximum AC charging current
• 120A maximum combined charging current
• Grid-connected operating capability
• Dual AC output functionality
• Compatible BMS communication expansion
• Parallel system support
• Adjustable transfer time
• Up to 98% DC-to-AC efficiency
• Intelligent LCD display
• Compact wall-mounted design

Technical Specifications

The datasheet specifies an operating temperature of -10°C to 50°C, storage temperature of -15°C to 60°C, noise below 50dB, and dimensions of 483 × 313 × 143mm.

Suitable Applications

• Residential hybrid solar systems
• Home backup power
• Off-grid solar installations
• Shops and commercial premises
• Offices and workspaces
• Farms and remote properties
• Lithium battery storage systems
• Generator-supported solar systems
• Grid-connected solar installations
• Expandable parallel inverter systems
