FSolar Atlantic F12 12kVA 48V Hybrid Solar Inverter

The FSolar Atlantic F12 is a high-performance 12kVA hybrid solar inverter engineered for large residential installations, commercial power systems, backup applications, and off-grid solar energy solutions.

Designed for a 48V battery system, the Atlantic F12 intelligently manages power from solar panels, batteries, utility electricity, and compatible generators. It provides stable pure sine wave output for appliances, office equipment, pumps, motors, lighting, electronics, and other compatible electrical loads.

With a rated output capacity of 12kVA and a powerful 24kVA surge capacity, the inverter can support demanding loads and equipment with high starting-power requirements.

Powerful Pure Sine Wave Output

The Atlantic F12 delivers clean and stable pure sine wave AC power, making it suitable for sensitive electronic equipment and demanding household or commercial appliances.

AC Output Performance

• Rated output capacity: 12kVA
• Surge power: 24kVA
• Output voltage: 220V / 230V / 240V AC
• Power factor: 1
• Output waveform: Pure sine wave
• Maximum battery-mode efficiency: 94%
• Transfer time:
  • 10ms in appliance/UPS mode
  • 20ms in generator mode
• Overload capability:
  • 1 minute at 102%–125% load
  • 10 seconds at 125%–200% load

Dual MPPT Solar Charging

The FSolar Atlantic F12 is equipped with dual MPPT solar trackers, allowing two separate solar arrays or panel orientations to be connected and managed efficiently.

The inverter supports up to 15kW of total PV input power when both MPPT inputs are used. A single MPPT supports up to 9kW, while the dual-input configuration supports 27A + 27A of PV input current.

Solar Input Specifications

• Solar charger type: Dual MPPT
• Single MPPT capacity: 27A / up to 9kW
• Dual MPPT capacity: 27A + 27A / up to 15kW
• MPPT operating voltage range: 60V–450V DC
• Maximum PV open-circuit voltage: 500V DC
• Maximum PV charging current: 160A

Solar panel strings must be designed so that the total open-circuit voltage remains safely below the inverter’s maximum PV voltage under all expected weather conditions.

160A High-Capacity Battery Charging

The Atlantic F12 provides powerful battery charging from solar panels, utility power, or a compatible generator.

Charging Performance

• Maximum PV charging current: 160A
• Maximum AC charging current: 160A
• Maximum combined charging current: 160A
• Maximum battery discharge current: 220A

The charge and discharge settings must always be configured according to the connected battery manufacturer’s permitted limits.

Lithium and Lead-Acid Battery Compatibility

The inverter supports both lithium and lead-acid battery systems, providing flexibility for different energy-storage applications.

It includes RS232, RS485, and CAN communication interfaces, enabling communication with compatible lithium battery management systems.

Battery and Communication Features

• Rated battery voltage: 48V DC
• Maximum discharge current: 220A
• Lithium battery support
• Lead-acid battery support
• RS232 communication
• RS485 communication
• CAN communication
• LCD display
• Built-in system monitoring

Battery communication compatibility and protocol settings must be confirmed before installation.

Flexible Grid and Generator Operation

The FSolar Atlantic F12 can operate with utility electricity and compatible generators, making it suitable for locations with unstable grid supply or installations that require an additional backup energy source.

Its wide AC input voltage range allows the inverter to adapt to different operating conditions:

• Normal mode input range: 90V–280V AC
• UPS mode input range: 170V–264V AC
• Input frequency: 50Hz / 60Hz, automatically adaptive

LCD Display and System Communication

The integrated LCD display provides access to important operating information, including solar production, battery status, AC input, output power, load condition, charging status, and system warnings.

Multiple communication interfaces make the inverter suitable for integration with compatible batteries and energy-management systems.

Key Features

• 12kVA rated output capacity
• 24kVA surge power
• 48V battery system
• Pure sine wave output
• Dual MPPT solar charger
• Up to 15kW total PV input
• 60V–450V MPPT operating range
• 500V maximum PV open-circuit voltage
• Dual PV input current of 27A + 27A
• 160A maximum PV charging current
• 160A maximum AC charging current
• 220A maximum battery discharge current
• Lithium and lead-acid battery compatibility
• RS232, RS485, and CAN communication
• Built-in LCD display
• Built-in system monitoring
• Utility and generator compatibility
• Maximum battery-mode efficiency of 94%

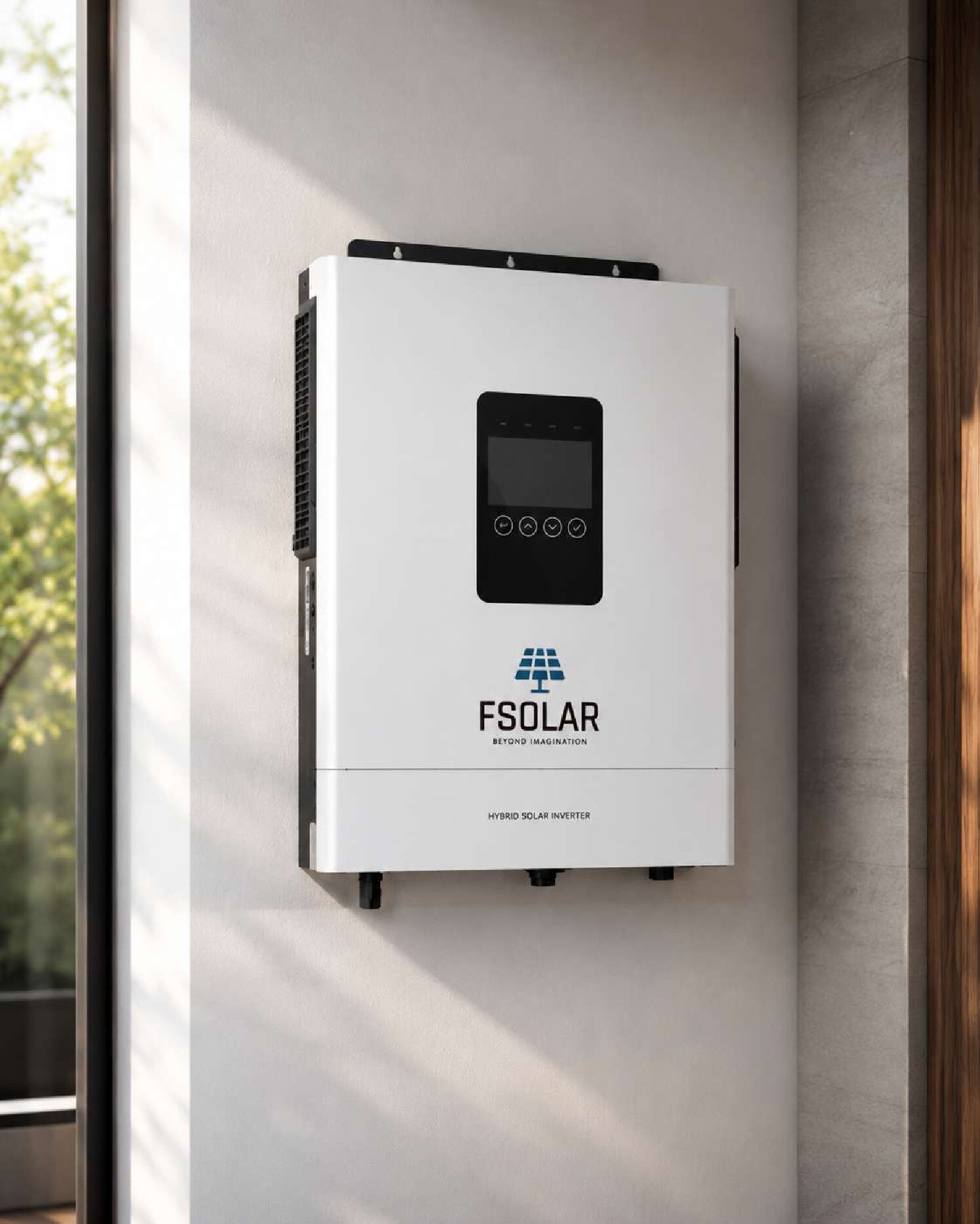

• Compact wall-mounted design

Technical Specifications

The datasheet specifies an IP21 enclosure, operating temperature from -10°C to 60°C, dimensions of 540 × 425 × 140mm, and a net weight of 15.2kg.

Suitable Applications

• Large residential solar systems
• Commercial solar installations
• Home and building backup power
• Off-grid solar power systems
• Shops, offices, and warehouses
• Farms and remote properties
• Lithium battery storage systems
• Generator-assisted solar systems
• High-load backup installations
• Dual-array solar installations
